BEH600PBT Heavy Grade 600mm² Porcelain Panel

For: A BT Floor Panel

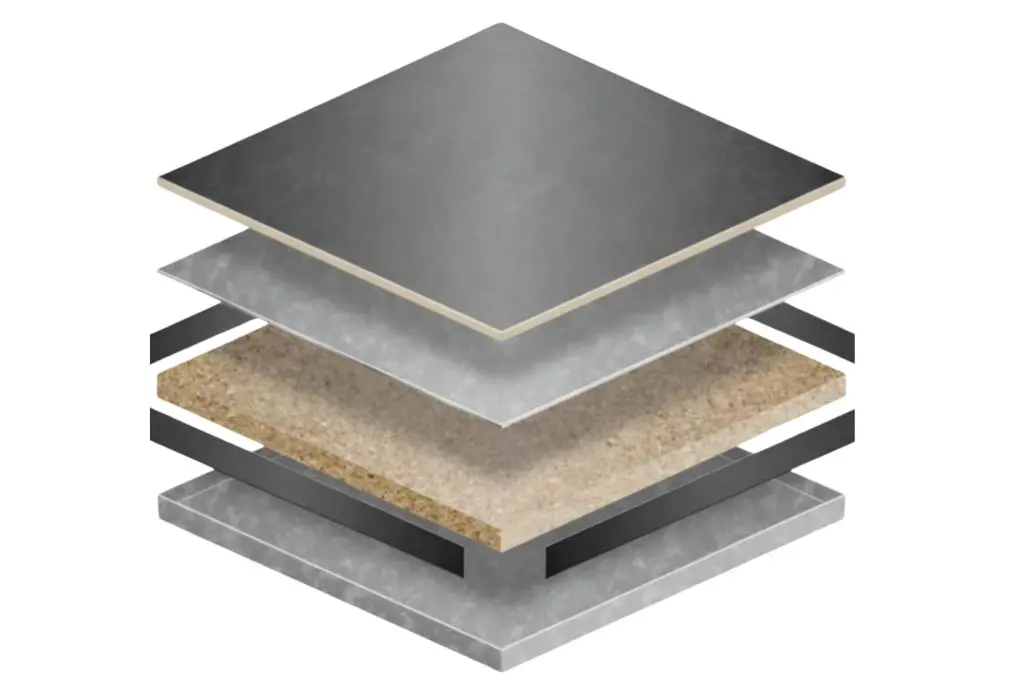

The panel comprises of a galvanised steel top and bottom tray that are bonded to an FSC® certified, high density particle board core for greater strength and durability. It is then covered with a Porcelain or Conglomerate Tile. This then has a half depth 2mm ABS edge band to the top of the ceramic tile creating a fully encapsulated 600mm² panel. It is designed to be gravity laid with complete electrical continuity and has a high resistance to damage.

Features:

• Porcelain tile
• Galvanised steel top tray
• High density particle board core
• Half depth edge band
• Wrap around tray forming encapsulation
